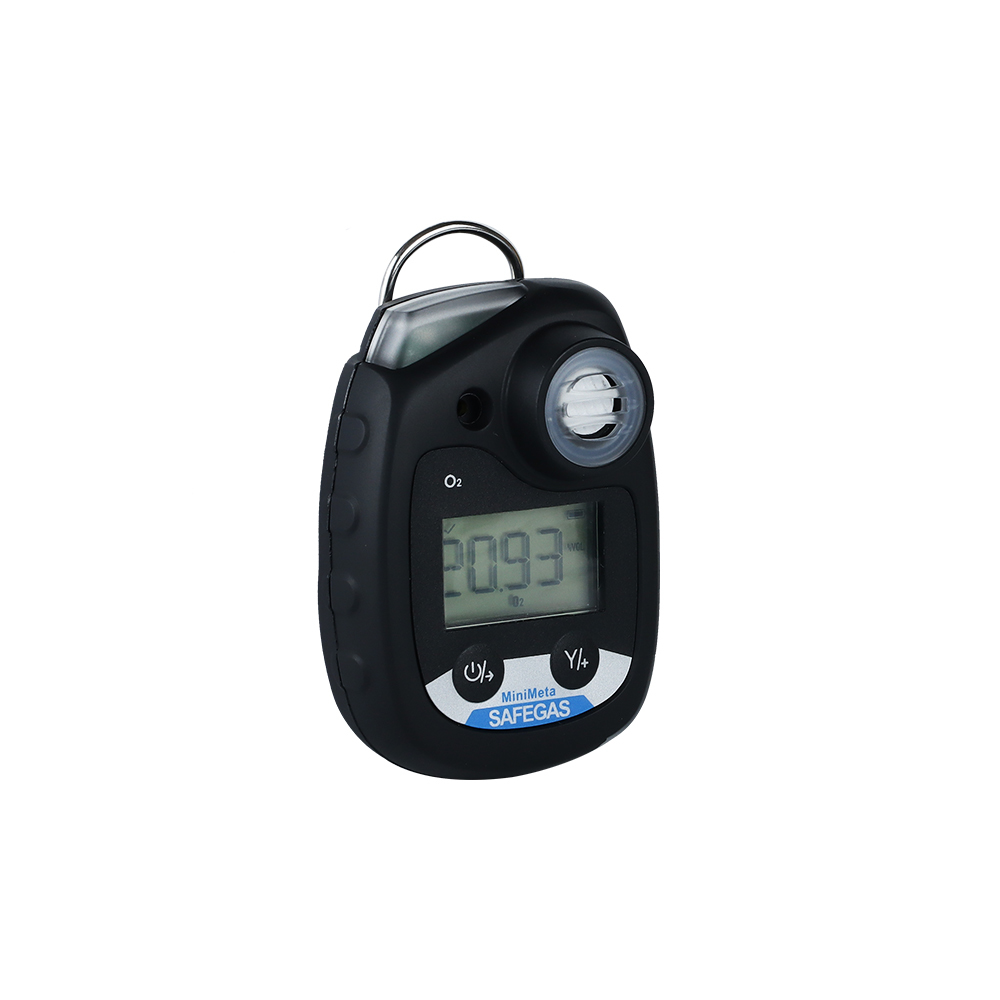

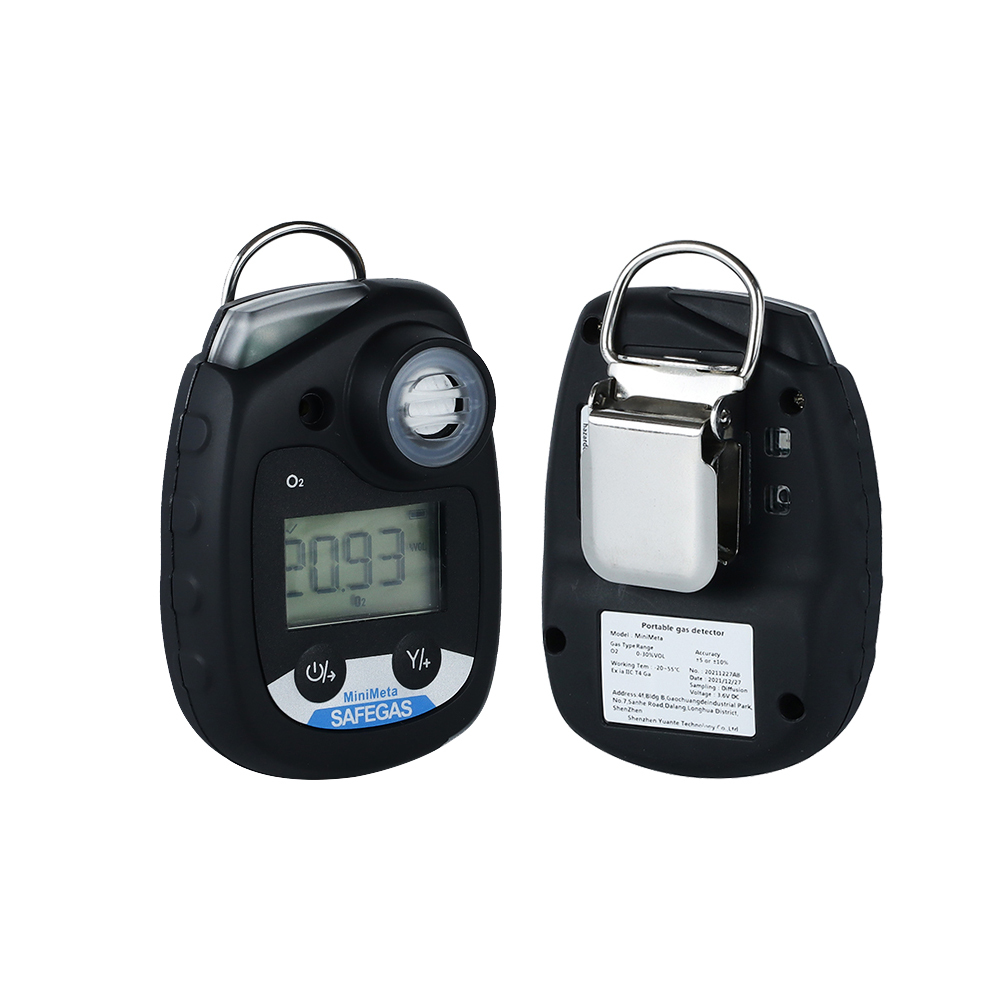

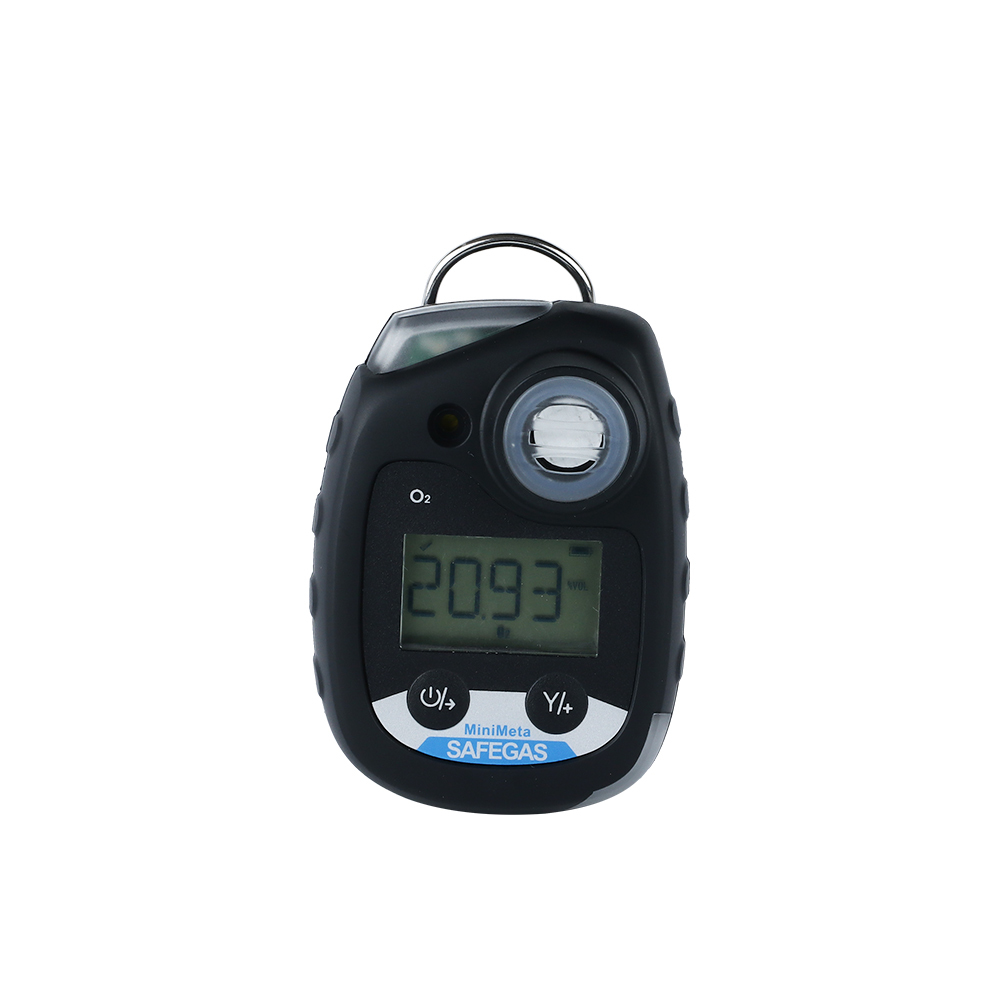

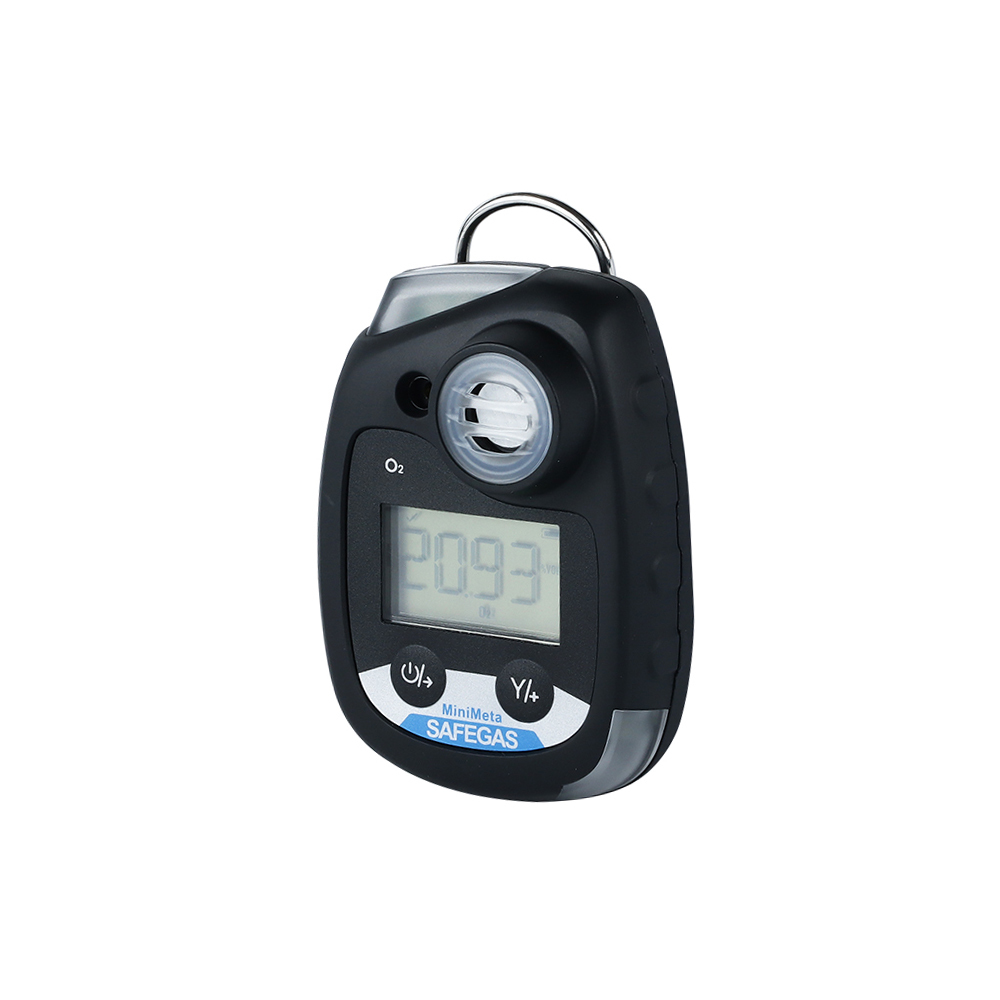

| Product Name: MiniMeta Single Gas Detector |
| Product Overview: MiniMeta is an IECEX/ATEX/EMC certified single-gas detector. It can detect hundreds of user-selected toxic gases, user friendly and easy for operation. The battery and sensor is replaceable to provide user a long-term protection. It is designed to offer a low long-term ownership cost of a gas monitoring system. |
| Product Advantages: |
| 1. IP68 water- and dust-resistant case |
| 2. Low power consumption with 2 years standby time, no need battery charge and calibration |
| 3. With Single /multi unit docking station to perform daily bump test and calibration (Optional) |
| 4. With event and data logging function (optional) |
| 5. With self-test function, which can improve safety by automatic self-test |
| 6. Small size, light weight and with back clip for easily carry |
| 7. 95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm |
| 8. Real time value, TWA, STEL, MAX, MIN multiple data display |
| Technical Parameters |
| Gas Detected: Specified according to application. |
| Detection Principle: Diffusion |
| Measure range: Specified according to application. |
| Resolution: Specified according to application. |
| Accuracy: ≤±2-5%FS (depending on the specific sensor) |
| Response time(T90): 15-30s (depending on the specific sensor) |
| (Detection) Principle: Electrochemical principle |
| Unit: PPM, mg/m³, %VOL |
| Display: Gas name, concentration unit, measured value, battery power |
| Alarm mode: Sound, light, vibration alarm, high and low alarm values can be set by yourself |
| Alarm type: Low alarm, high alarm, STEL, TWA, low battery optional calibration due and bump test due |
| Power supply mode: 3.6V dry battery (non-rechargeable) |
| Explosion-proof grade: ExiaIICT4Ga |
| Protection class: IP68 |
| Executive standards: GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2 |
| Working temperature: -20℃~55℃ |
| Working humidity: 0-95%RH (non-condensing) |
| Working air pressure: 86~106kpa |
| Dimensions: 90×60×33mm (length×width×thickness) |
| Weight: 125g (With Clip) |
Product Images
Gas Detection Capabilities
Company Profile
Established in 2010, Shenzhen Yuante Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With gas detector as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic,Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.
For years, Yuante always insists on the management concept Market is orientation; Innovation is motivation; Quality to survival; Development to growth. With friendly, open and strict corporate culture and standardized management, Yuante gathers a lot of talents, and builds up the management team and R&D team. All the staff cooperates well in product development, production and maintenance, and has a deep understanding of the concept of customer oriented and has the service spirit through the company operation and management, to win the trust and support from customers.
The essence of a detector is the accuracy and faster response. Depending on years of measurement experience and unique solutions, through independent research and development, cooperative development and learning overseas latest technology, Yuante's products are advanced beyond the domestic brands and ahead of the global brands. We are seeking for development and progress constantly, and trying to meet diversified demands from customers.
R&D team
Product Line
Certifications
Cooperated Clients
FAQ
Why Choose Us
1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Southeast Asia(20.00%),North America(17.00%),South America(15.00%),South Asia(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Central America(5.00%),Africa(3.00%),Oceania(2.00%),Western Europe(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Eastern Europe(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Portable Gas Detectors, Fixed Gas Detectors, Gas Analyzers, Multi Gas Detectors
4. Why should you buy from us not from other suppliers?
We have independent dust-free production workshop, modern production equipment, and professional staff. We implement flexible and competitive price and diversified sales strategy. We provide 24h/day service to users, rapid in response, technical guidance.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Western Union;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
