IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record

اطلاعات پایه
محل منبع: چین
نام تجاری: SAFEGAS
گواهی: ATEX/EMC/IECEX
شماره مدل: میکه
مقدار حداقل تعداد سفارش: 1
قیمت: قابل مذاکره
جزئیات بسته بندی: کارتن (22*16*11cm)
زمان تحویل: 3 روز کاری
شرایط پرداخت: T/T
قابلیت ارائه: 3000 قطعه در ماه
اطلاعات تکمیلی
نوع گاز: قابل سفارشی سازی، تا 5 گاز روش کار: نمونه گیری انتشار
زمان پاسخ (T90): کمتر از 30 ثانیه پلت فرم کالیبراسیون: ایستگاه docking اختیاری برای انجام کالیبراسیون روزانه و تست دست انداز
باتری: باتری لیتیومی 3.7 ولت، قابل شارژ انتقال بی سیم: انتقال بی سیم بلوتوث یا لورا اختیاری
ساعات کاری: 24 ساعت زمان شارژ: کمتر از 6 ساعت
گواهی: ATEX, CN, IECEX درجه حفاظت: IP66/IP68
وزن (با باتری داخلی): 240 گرم ضبط داده ها: 1000 مجموعه
سابقه وقایع: 100 ست
برجسته کردن:

24 Hours Working Time Multi Gas Detector,1000 Sets Data Record Gas Detection Instrument,100 Sets Events Record Portable Gas Analyzer

,

1000 Sets Data Record Gas Detection Instrument

,

100 Sets Events Record Portable Gas Analyzer


توضیحات محصول

IECEX Certified Multi Gas Detector with IP66/IP68 Protection Grade and Back Clip
Product Overview

The Safegas Portable Multi Gas Detector is a lightweight, IECEX certified device with IP68 drop resistance featuring diffusion suction and a convenient back clip.

MicMeta is a multi-gas detector with IP66/IP68 protection that can detect 1-4 gases simultaneously. When configured for CO and H2S detection, it can monitor up to 5 gases concurrently.

This detector holds three explosion-proof certifications: IECEX, ATEX, and China Explosion-proof, with an explosion-proof level of Ex ia IICT4 Ga/Ex ia I Ma, making it suitable for use in Zone 0 and Zone 1 hazardous areas.

Features include an LCD screen with Chinese/English language support, two-level sound and light alarms with customizable settings, optional PC software for data download, and an optional docking station for simplified bump testing, calibration, configuration, and data recording.

Product Images

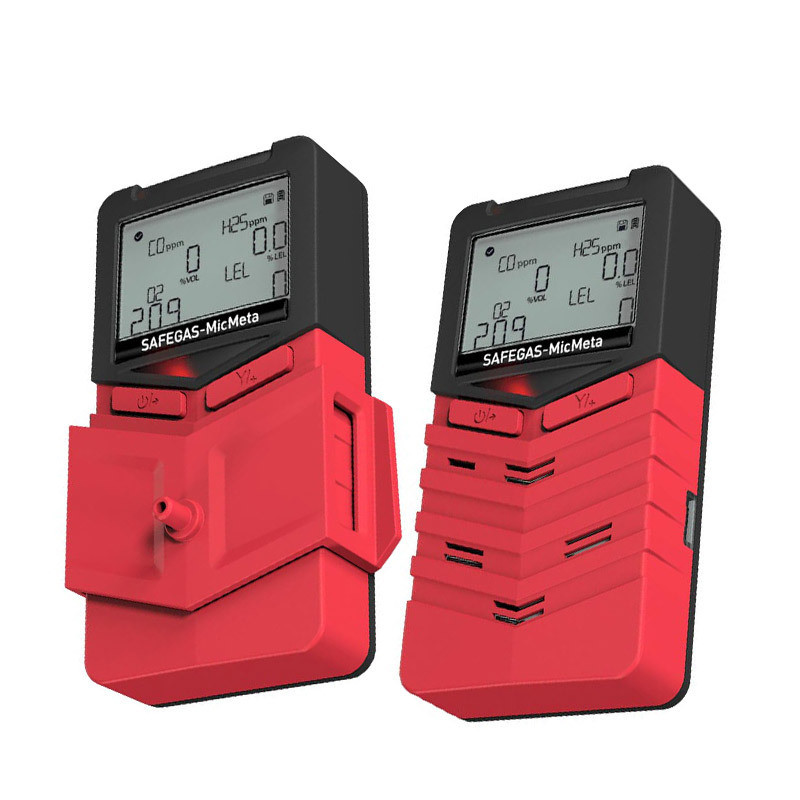

IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 0

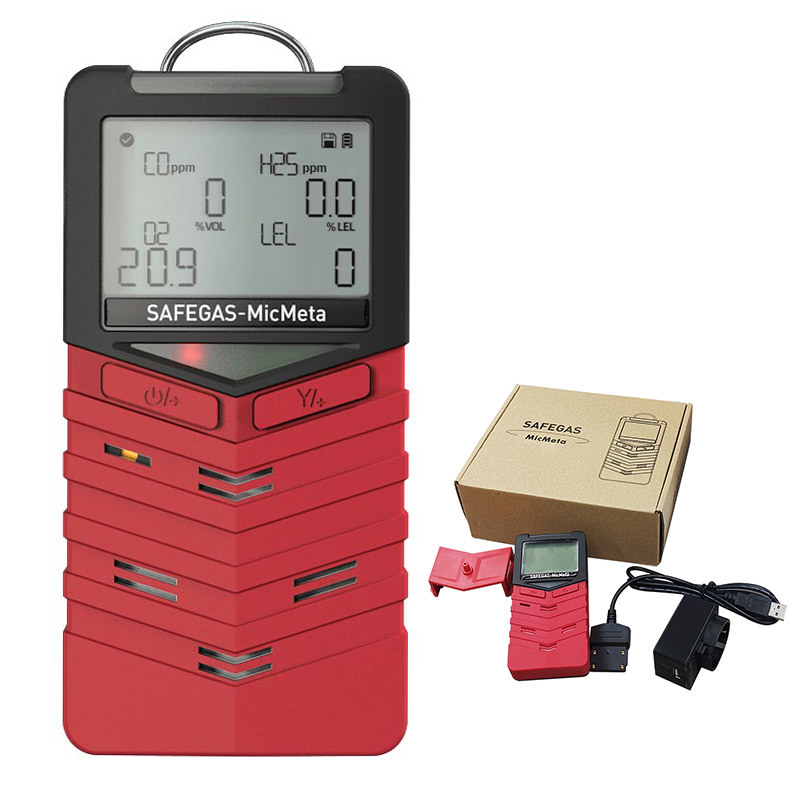

IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 1

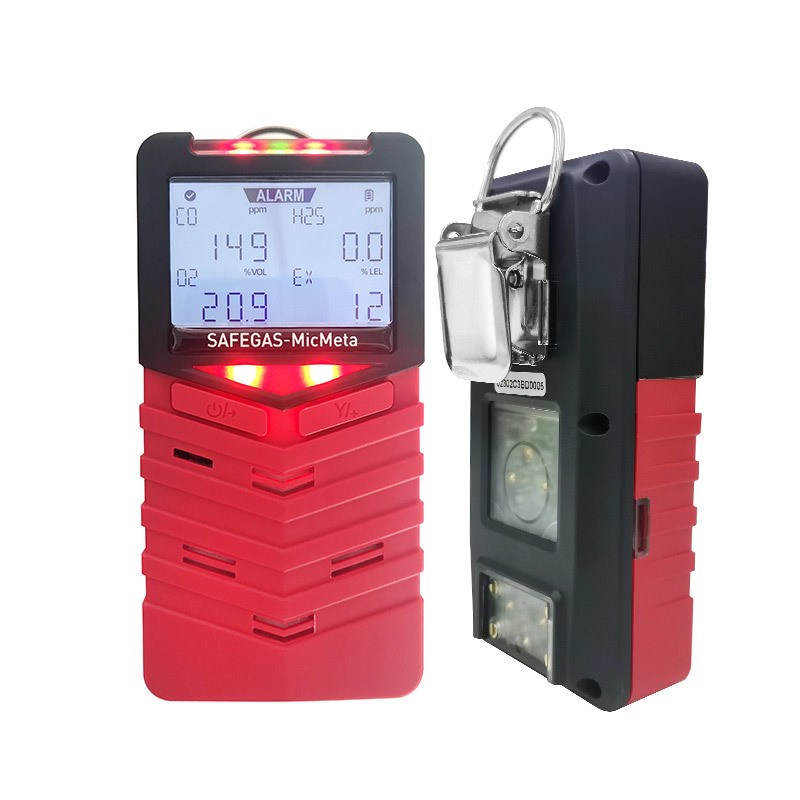

IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 2

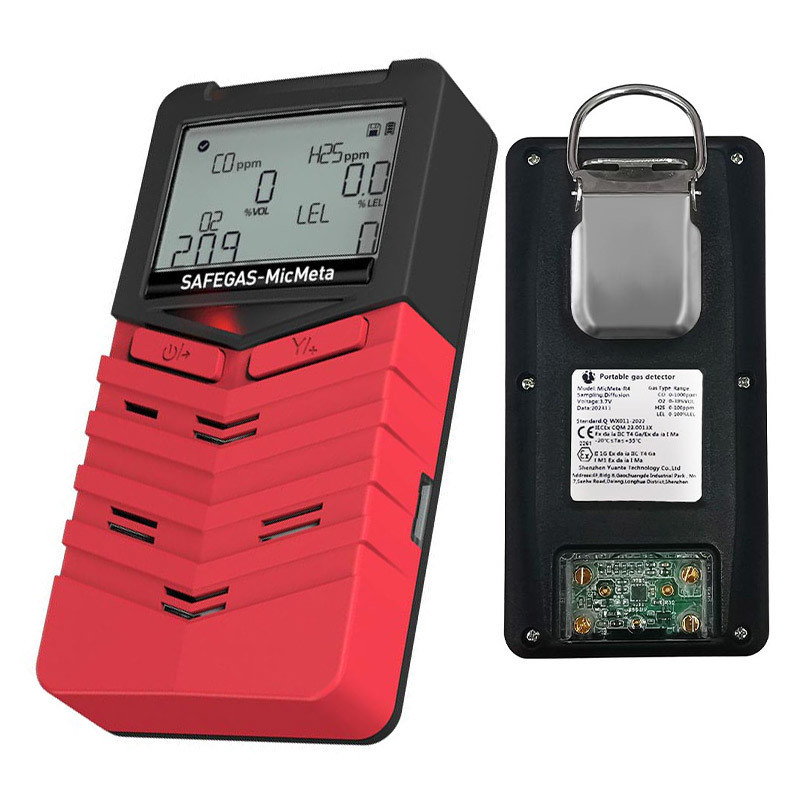

IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 3
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 4
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 5
Key Features
  • Compact and Lightweight: Only 240g with robust construction that withstands 1.5 meter drops and features IP66/IP68 waterproof/dustproof protection
  • User-Friendly Operation: Simple two-button control interface
  • Bright Visual Alarm: Wide-angle visual alarm bar for enhanced visibility
  • EMC Tested: Successfully passed anti-static interference tests for reliable operation
  • Ergonomic Design: Comfortable, wear-resistant back clip for easy carrying
Technical Specifications
Specification Details
Sampling Method Diffusion suction
Gas Type Customizable, detects up to 5 gases
Response Time ≤60S (T90)
Precision ≤±5%FS or ±10% (depends on sensor)
Display Segment code LCD display
Alarm System 95dB buzzer, vibration, flashing red bar, on-screen alarm status
Battery 3.7V rechargeable lithium (2300mAh)
Working Time 18h standby, <6h charging
Explosion-proof Grade IECEx: Ex ia IIC T4 Ga, Ex ia I Ma
ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma
Protection Grade IP66/IP68
Dimensions 113*60*32mm (L*W*H)
Weight 200g (with battery)
Detectable Gases
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 6
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 7
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 8
Applications
Chemical Industry Environmental Monitoring Healthcare Automotive Industrial Safety Wastewater Treatment Oil & Gas Food Production Mining
Why Choose Our Product?
  • 25+ years of R&D team experience
  • Company certifications: ISO9001, ISO45001
  • Product certifications: IECEx (China's only), ATEX, CE
  • Fast delivery: 5-7 days
  • Annual production capacity: 80,000 units
  • 24/7 professional support
Frequently Asked Questions
Q: What is a gas detector?
A: A gas detector is an instrument for detecting gas leakage concentrations, available in portable and fixed configurations.
Q: What gases can be detected?
A: Combustible gases (methane, LPG, acetylene) and toxic gases (CO, H2S, ammonia, chlorine, etc.).
Q: What does ppm mean?
A: ppm (parts per million) indicates gas volume concentration - the volume of gas per million volumes of air.
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 9
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 10
