| گاز شناسایی شده: | NH3 | دامنه اندازه گیری: | 0-500/1000PPM |
|---|---|---|---|
| قطعنامه: | 0.1ppm | دقت: | 2-5 ≤ 5 ٪ FS |
| ابعاد: | 205*75*32mm | گارانتی: | 1 سال |

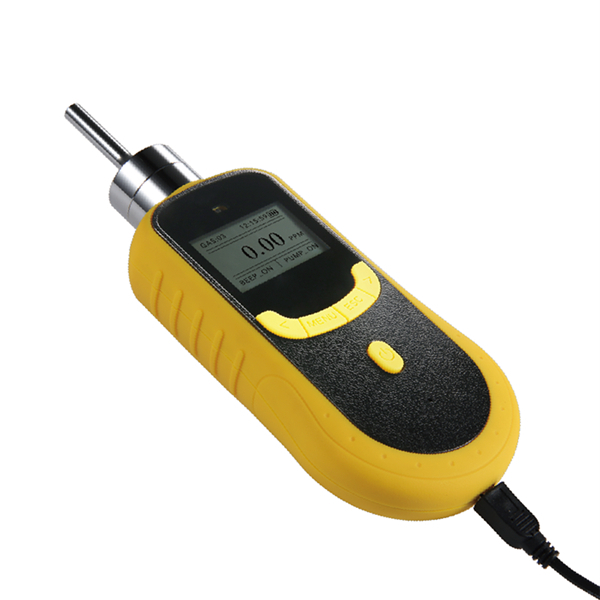

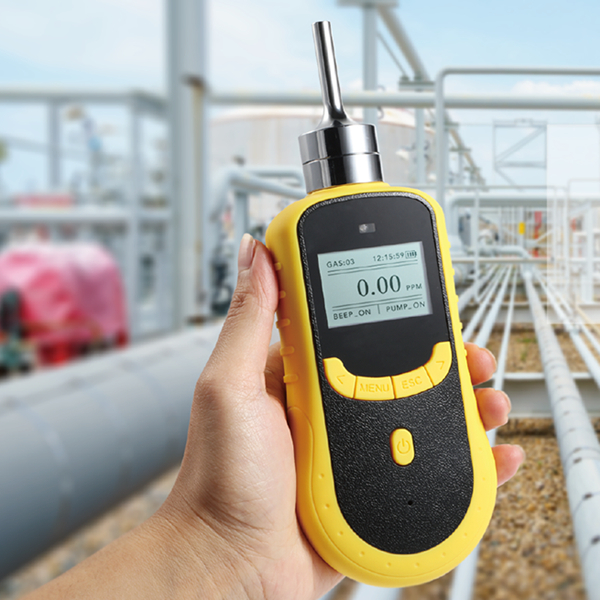

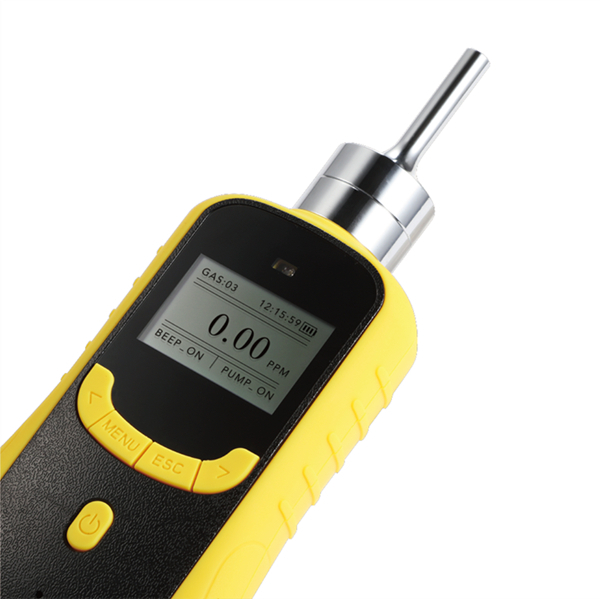

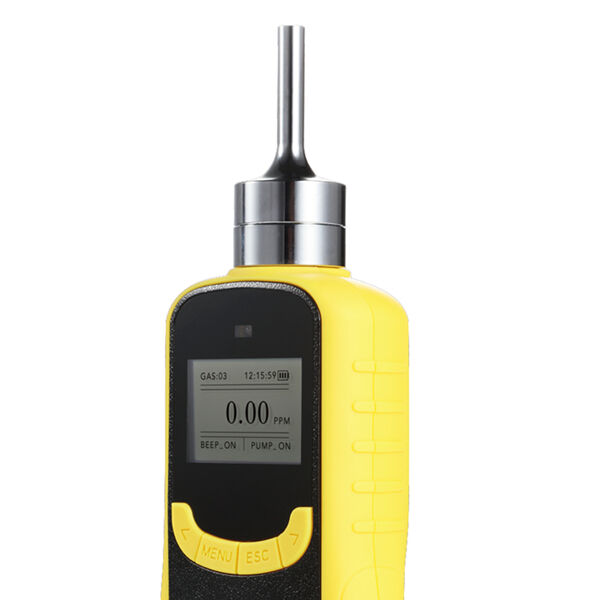

High-precision portable NH3 Ammonia Gas Detector with Pump-Sunction detection principle, designed for industrial safety applications
SKY2000 series gas detector is a kind of fast response and high accuracy gas measurement device. With internal sampling pump, fast sampling speed and high flow rate, ensuring the response time of the detector. Unique design, small size and easy to carry with. Special high intensity engineering plastics housing, suitable for different kinds of situation and environment.
| Parameter | Specification |
|---|---|
| Gas Detected: | NH3 other gases can be specified |
| Detection Principle: | Electrochemical |
| Measure range: | 0-500/1000PPM |
| Resolution: | 0.1PPM |
| Precision: | ≤ ± 1-5% F.S |
| Data logging (Optional function) | 100000 readings can be stored on device and download through PC software |
| Response Time : | ≤30S |
| Repeatability: | ≤ ± 1% |
| Zero shift: | ≤ ± 1% ( F.S/year ) |
| Operating language: | Chinese/English |
| Temperature: | 20℃ ~ 50℃ |
| Explosion-Proof: | Ex ia IIC T4 Ga |
| Alarm mode: | Sound, light, vibration |
| Dimensions: | 2057532mm |
| Recovery Time: | ≤10S |
| Linearity error: | ≤ ± 1% |
| Display : | LCD dot matrix display |
| Gas unit: | Units are switchable |
| Humidity: | 0-90%RH |
| Degree of protection: | IP66 |
| Operating time: | 100h ( pump off ) |
| Weight: | 300g |
