Rugged Portable Multi-Gas Detector with IP67 Waterproof/Dustproof, Pump-Aspirated Sampling, and Alarms for Four Gases

Rugged Portable Multi-Gas Detector with IP67 Waterproof/Dustproof, Pump-Aspirated Sampling, and Alarms for Four Gases
Rugged Portable Multi-Gas Detector with IP67 Waterproof/Dustproof, Pump-Aspirated Sampling, and Alarms for Four Gases
Rugged Portable Multi-Gas Detector with IP67 Waterproof/Dustproof, Pump-Aspirated Sampling, and Alarms for Four Gases Rugged Portable Multi-Gas Detector with IP67 Waterproof/Dustproof, Pump-Aspirated Sampling, and Alarms for Four Gases Rugged Portable Multi-Gas Detector with IP67 Waterproof/Dustproof, Pump-Aspirated Sampling, and Alarms for Four Gases Rugged Portable Multi-Gas Detector with IP67 Waterproof/Dustproof, Pump-Aspirated Sampling, and Alarms for Four Gases
اطلاعات پایه
محل منبع: چین
نام تجاری: Safegas
گواهی: IECEX/ATEX/EMC
شماره مدل: SKY3000
مقدار حداقل تعداد سفارش: 1
قیمت: قابل مذاکره
جزئیات بسته بندی: کارتن
زمان تحویل: 4 روز کاری
شرایط پرداخت: T/T
قابلیت ارائه: 50 عدد در روز
بهترین قیمت اکنون تماس بگیرید
اطلاعات تکمیلی
دقت: ≤±1-5% FS اندازه بسته بندی تکی: 34cm*24cm*14cm
بعد: 157*84.5*59.5 میلی متر دمای عملیاتی: -20 تا 50 درجه سانتی گراد
روش آمپلینگ: مکش پمپاژ انتقال بی سیم: اختیاری ، توسط 4G ، Lora ، WiFi
جنس بدنه: PC+TPU پشتیبانی از گاز: 6 نوع گاز در 1 دستگاه

توضیحات محصول

SKY3000 Portable Pumping Multi-Gas Detector (O₂ / CO / H₂S / LEL)
A rugged, pump-suction four-gas detector certified to IECEx, ATEX, and EMC standards. Simultaneously monitors oxygen (O₂), carbon monoxide (CO), hydrogen sulfide (H₂S), and combustible gases (LEL). Designed for forced gas sampling in confined spaces and hazardous environments.

Product Overview
The SKY3000 is a high-performance portable gas detector with a built-in sampling pump, capable of measuring up to six gas types in a single device. The standard configuration covers four common gases: O₂, CO, H₂S, and LEL. Its wireless communication option allows remote access to real-time data and alarm status. An onboard data logger stores up to 100,000 readings, and data can be exported directly to a PC without additional software.

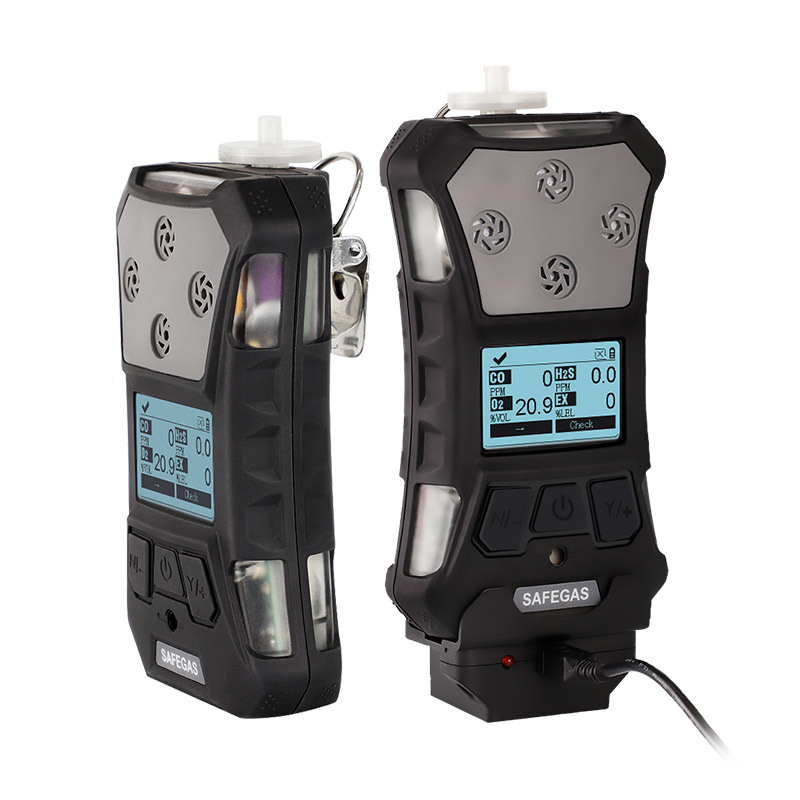

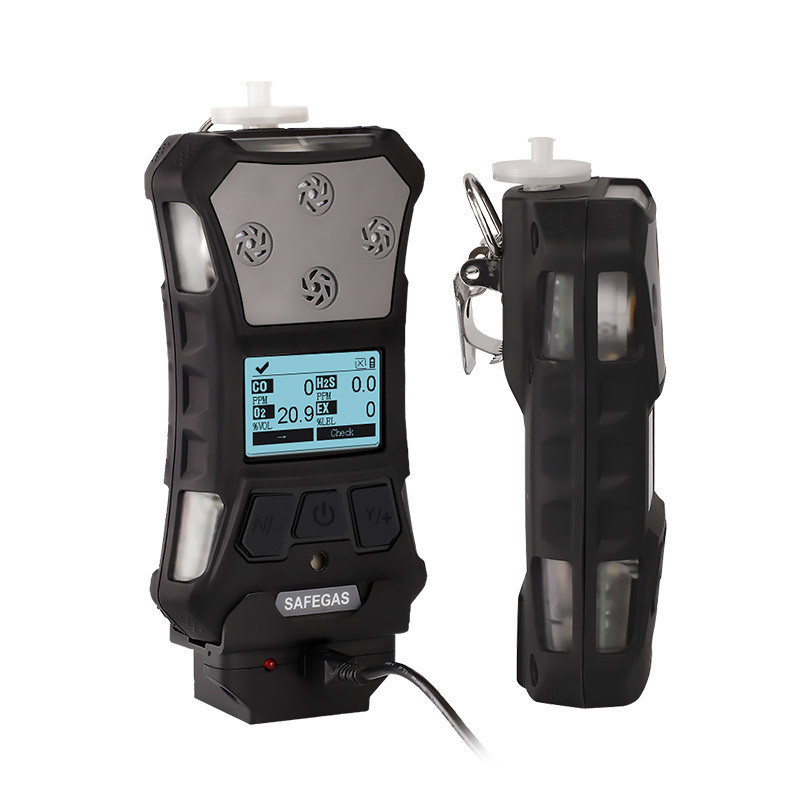

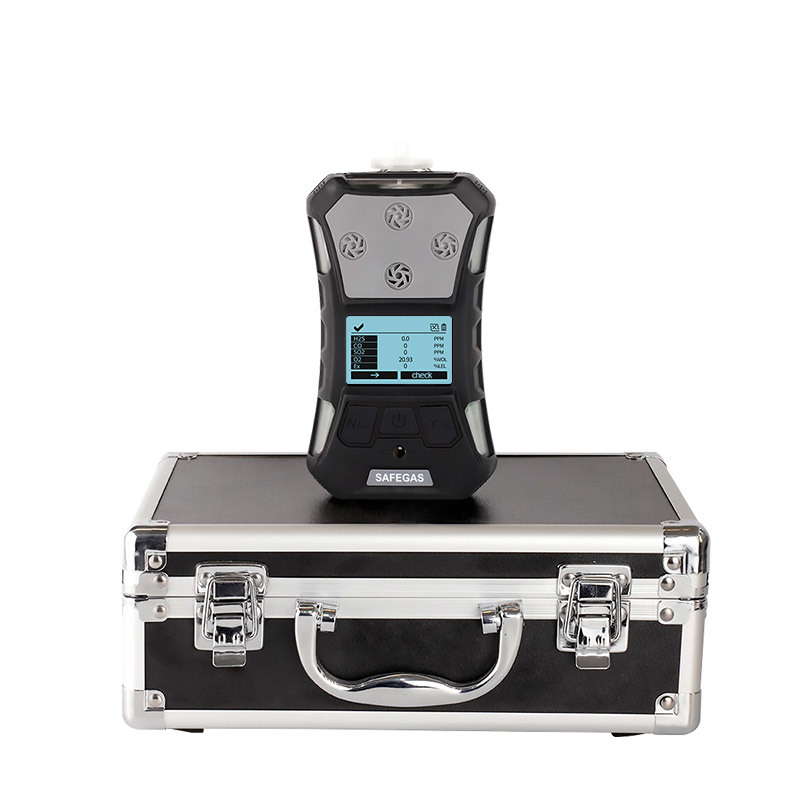

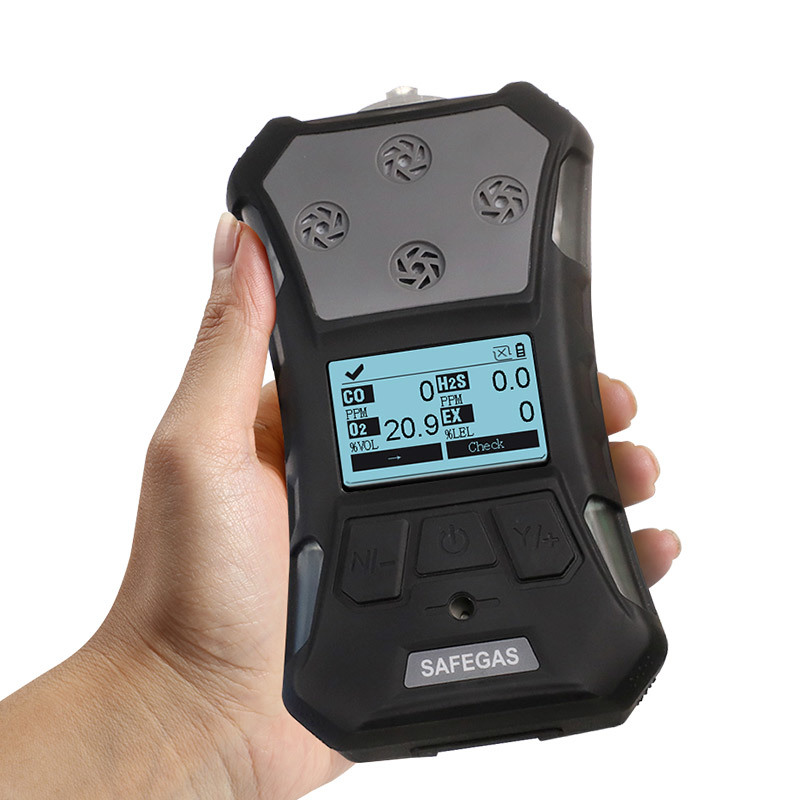

Product Pictures

Rugged Portable Multi-Gas Detector with IP67 Waterproof/Dustproof, Pump-Aspirated Sampling, and Alarms for Four Gases 0

Rugged Portable Multi-Gas Detector with IP67 Waterproof/Dustproof, Pump-Aspirated Sampling, and Alarms for Four Gases 1

Rugged Portable Multi-Gas Detector with IP67 Waterproof/Dustproof, Pump-Aspirated Sampling, and Alarms for Four Gases 2

Rugged Portable Multi-Gas Detector with IP67 Waterproof/Dustproof, Pump-Aspirated Sampling, and Alarms for Four Gases 3

Rugged Portable Multi-Gas Detector with IP67 Waterproof/Dustproof, Pump-Aspirated Sampling, and Alarms for Four Gases 4

Key Technical Specifications
Parameter Value
Gases Detected O₂, CO, H₂S, LEL (combustible)
Detection Principle Electrochemical (O₂/CO/H₂S), Catalytic (LEL)
Measure Range O₂: 0-30%VOL; CO: 0-1000ppm; H₂S: 0-100ppm; LEL: 0-100%LEL (customizable)
Resolution O₂: 0.1%VOL; CO: 1ppm; H₂S: 0.1ppm; LEL: 1%LEL
Response Time ≤20 seconds (for all gases)
Precision ≤±1-5% F.S. (gas-dependent)
Unit ppm, mg/m³, %LEL, %VOL
Display LCD (160×96), supports 180° screen rotation
Backlight Auto-on during alarm; manual adjustable duration
Data Logging 100,000 records; storage interval 5-3600 seconds; export to PC - no software required
Alarm Types 95dB@30cm buzzer, flashing red LED, vibration; alarm latch, diagnostic alarms (battery under-voltage, pump failure, man-down)
Battery 3.7V rechargeable lithium, 2200mAh capacity
Operating Hours >15 hours in continuous pumping mode
Charger Travel charger with DC interface; charging time ≥4 hours
Operating Temperature -20℃ ~ +50℃
Humidity 10-90% RH (non-condensing)
Protection Grade IP67 (water and dust resistant)
Drop Resistance 3 meters
Explosion-proof Grade IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga
Dimensions 157 × 84.5 × 59.5 mm (including back clip / water trap filter)
Weight 365g (including battery, belt clip, and filter)

Main Features
  • Built-in sampling pump - Actively draws in air for fast response, ideal for confined space entry and leak detection.
  • Robust & durable - IP67 rated against dust and water, plus 3-meter drop resistance for harsh job sites.
  • Man-down alarm - Standard function to alert when the operator is motionless, enhancing lone worker safety.
  • Large graphical display - 180-degree rotatable screen for easy reading in any orientation.
  • Comprehensive data logging - Stores 100,000 records with adjustable interval; export directly via USB - no driver or software needed.
  • Wireless connectivity (optional) - Supports Lora or Bluetooth for remote real-time monitoring.
  • Water trap filter - Included standard to protect the pump and sensor from moisture and dust.
  • Multi-language support - Chinese, English, Russian, Polish; additional languages available on request.
  • One-key factory reset - Quickly restore default settings.
  • Long battery life - Over 15 hours of continuous pumping on a full charge.
  • Alarm variety - Audible (95dB), visual (high-brightness red LEDs), and vibration; also includes pump failure and under-voltage alarms.

Typical Applications
  • Confined space entry (tanks, pipelines, sewers)
  • Oil & gas drilling and refining
  • Chemical and petrochemical plants
  • Mining and metallurgy
  • Fire and rescue operations
  • Wastewater treatment facilities
  • Shipbuilding and marine industries

Company Advantages
  • Decades of R&D experience - Engineering team with over 25 years in gas detection technology.
  • International certifications - Fully compliant with IECEx, ATEX, and EMC standards for explosive atmospheres worldwide.
  • Quality assurance - Manufactured under ISO9001 and ISO45001 management systems.
  • Fast turnaround - Typical delivery: 5-7 working days.
  • High annual capacity - 80,000 units per year.
  • 24/7 customer support - Professional after-sales service available round the clock.

Manufacturer Profile
Shenzhen YuanTe Technology Co., Ltd. (brand: Safegas) was established in 2010 and specializes in the R&D, manufacturing, and sales of gas detection equipment and integrated systems. With over 16 years of industry expertise, the company serves sectors including oil & gas, chemicals, energy, environmental protection, electronics, municipal engineering, agriculture, and home appliances.

Standard Package
Item Quantity
SKY3000 gas detector (with installed sensors for O₂, CO, H₂S, LEL) 1 piece
Built-in pump and water trap filter (pre-installed) 1 set
USB charging cable & travel charger (DC interface) 1 set
Calibration cap / adapter 1 piece
Belt clip (alligator style) 1 piece
User manual 1 piece
Certificate of conformity / Warranty card 1 piece
Note: The detector is shipped with a standard 2200mAh lithium battery. Charger input voltage is suitable for worldwide use (100-240V AC).
