| اصل: | الکتروشیمیایی | گاز شناسایی شده: | CO |
|---|---|---|---|
| اصل تشخیص: | انتشار | دامنه اندازه گیری: | 0-1000ppm |
| قطعنامه: | 1ppm | دقت: | 2-5 ≤ 5 ٪ FS |
| زمان پاسخ (T90): | 30 ~ 30s | حالت زنگ: | زنگ صدا ، نور و لرزش |
| نوع زنگ هشدار: | زنگ هشدار کم ، زنگ بلند ، استیل ، TWA ، باتری کم | حالت منبع تغذیه:: | باتری خشک 3.6 ولت |
| صدور گواهینامه ضد انفجار: | iecex ، atex | کلاس حفاظت: | IP66/68 |
| دمای کاری: | -20 ~ 55 ℃ | رطوبت کار (غیرقانونی): | 0 ~ 95 ٪ rh |
| وزن: | 125 گرم (با کلیپ و باتری) |

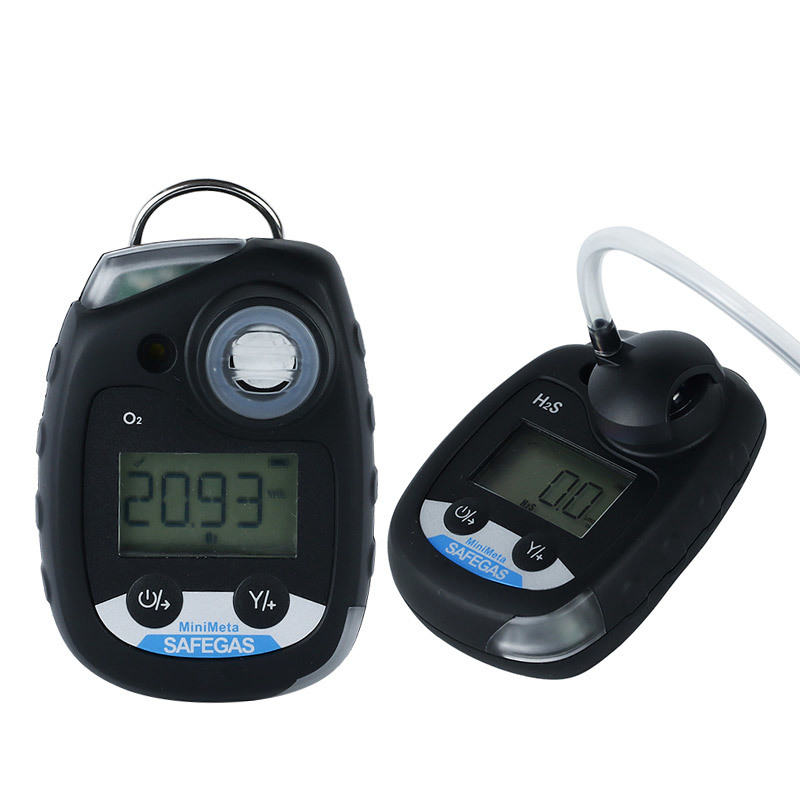

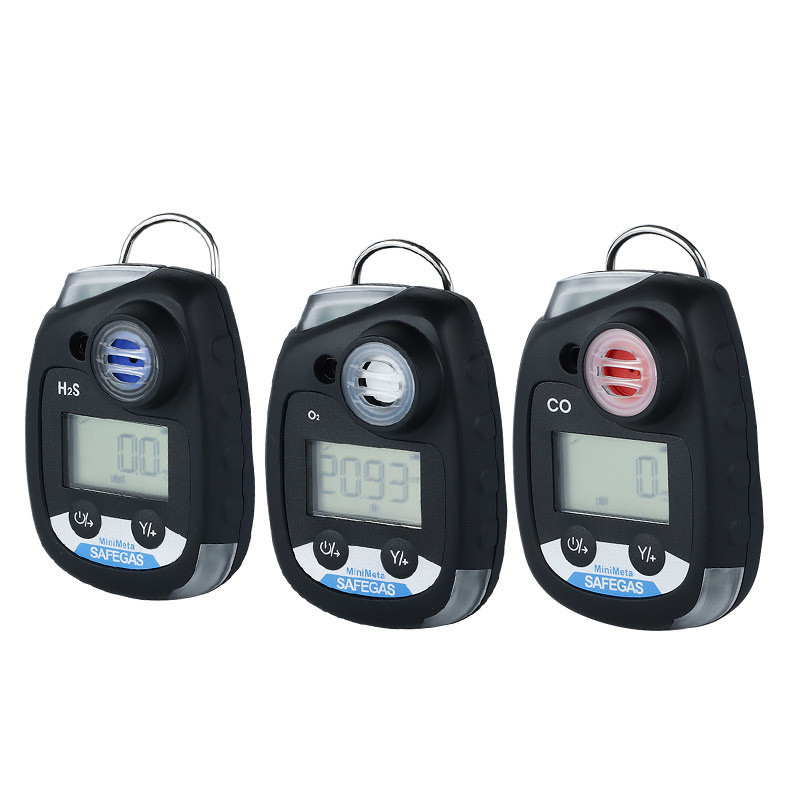

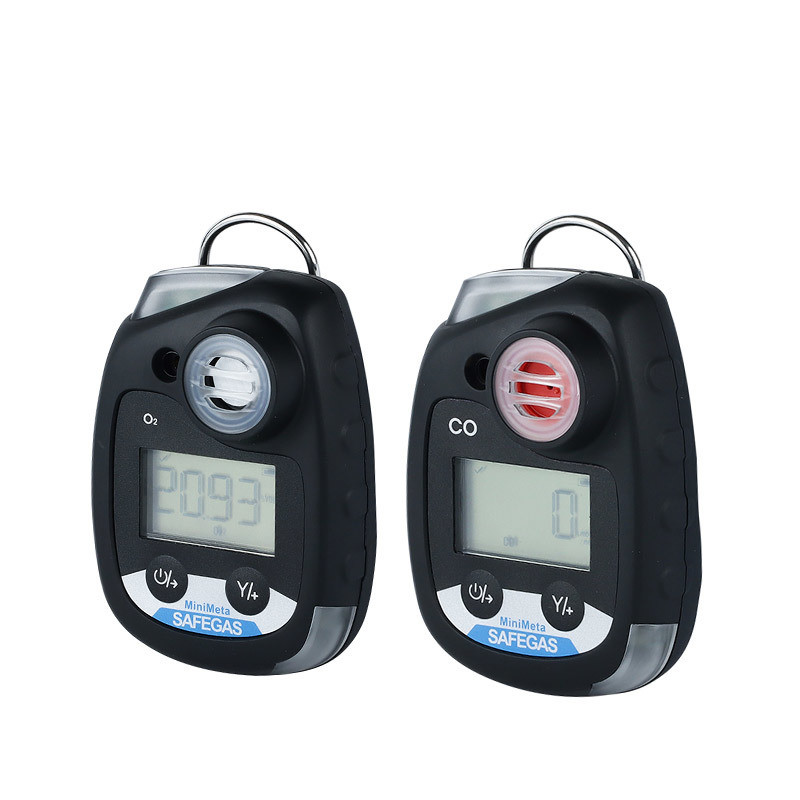

The MiniMeta is a highly reliable and versatile single-gas detector with IECEx, ATEX, and EMC certifications, ensuring compliance with international safety standards for use in explosive atmospheres and electromagnetic environments.
| Parameter | Specification |
|---|---|
| Detect Gas | Carbon Monoxide (CO) |
| Sensor Type | Electrochemical |
| Sampling Method | Diffusion |
| Measure Range | 0-1000PPM |
| Resolution | 1PPM |
| Precision | ≤± 3% F.S. |
| Response Time | ≤30s(T90) |
| Display | Gas name, concentration unit, measured value, battery level |
| Alarm Mode | Sound, light, vibration alarm with customizable high/low settings |
| Operating Language | Chinese/English |
| Size | 90×60×33mm |
| Weight | 125g |
| Working Temperature | -20ºC to 50ºC |
| Working Humidity | 0-95%RH |
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production and sales of gas detection equipment and systems for 16 years. We provide complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, and more.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Our products meet international explosion-proof standards comparable to brands but with competitive pricing.
We proudly serve major international companies including Huawei, Coca-Cola, Samsung, Nestle and more.
