خانه > محصولات> آشکارساز چند گازی> ETO Gas Detector Portable Gas Analyzer with 0-100PPM Range IP67 Protection and Data Logging

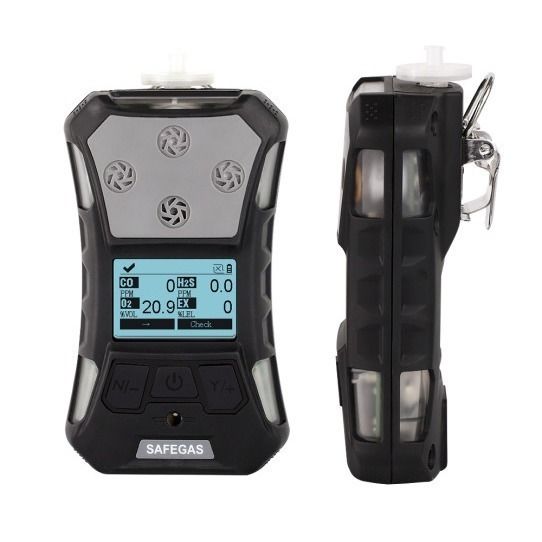

ETO Gas Detector Portable Gas Analyzer with 0-100PPM Range IP67 Protection and Data Logging

اطلاعات پایه

محل منبع:	چین
نام تجاری:	SAFEGAS
گواهی:	ATEX/EMC/IECEX
شماره مدل:	SKY3000

مقدار حداقل تعداد سفارش:	1
قیمت:	قابل مذاکره
جزئیات بسته بندی:	چمدان آلومینیوم
زمان تحویل:	3 روز کاری
شرایط پرداخت:	T/T، وسترن یونیون
قابلیت ارائه:	1000 قطعه در ماه

بهترین قیمت اکنون تماس بگیرید

اطلاعات تکمیلی

گاز:	ETO	دامنه اندازه گیری:	0-100ppm
قطعنامه:	0.1ppm	نوع سنسور:	الکتروشیمیایی
روش نمونه گیری:	مکش پمپ	گواهی:	CE,ATEX,IECEx,ISO
زبان:	چینی/انگلیسی/روسی/سفارشی	حالت زنگ:	بيزر، ال اي دي و ارتعاش
قدرت:	با باتری لیتیوم قابل شارژ 3.7 ولت	ساعت کار:	بیش از 15 ساعت (با پمپ در حال کار)
ضبط داده ها:	آیا می توانید 100000 داده های مجموعه را ذخیره کنید	اندازه بسته تکی::	34cm24cm14cm
وزن ناخالص تک::	1.64 کیلوگرم	درجه حفاظت:	IP67

توضیحات محصول

ETO Gas Safety Detector Portable Analyzer For Confined Space Or Sterilization High Response

Rechargeable ETO Analyzer 0-100ppm with IP67 Protection & Data Logging

Product Overview

SKY3000 Portable Gas Detector - A high-performance portable gas detector capable of detecting multiple gases simultaneously with man down alarm function. Features international IECEX and ATEX explosion-proof certification with IP67 protection rating.

Technical Specifications

Parameter	Specification
Sampling method	Pump suction
Gas type	Specified according to application
Measure range	Specified according to application
Resolution	Specified according to application
Response time	≤10 seconds
Precision	≤±1% F.S
Language	English (Other languages customizable)
Automatic functions	Reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit	PPM and mg/m³ switchable
Display	Monochrome graphics (160 x 96), automatic screen flip
Backlight	Manually settable time, automatic on during alarm
Data record	100,000 data sets, adjustable storage interval 5-3600 seconds, data exportable
Alarm	95dB buzzer, vibration, flashing red LED, screen indication, diagnostic alarm, battery undervoltage, pump block, man down alarm with Bluetooth notification
Battery	3.7V rechargeable lithium battery, 2200mA capacity
Working hours	More than 15 hours continuous pumping
Charger	Travel charger with DC interface, ≥4 hours charging time
Explosion-proof grade	IECEX/ATEX (II IG Ex ia IIC T4), CNEX: Ex ia IIC T4 Ga
Certification (EU)	2004/108/EC (EMC), 1995/5/EC (Radio), 94/9/EC (ATEX)
Protection grade	IP67/IP68
Working temperature	-20ºC to +50ºC
Humidity	0-90% RH (no condensation)
Environmental pressure	86-106 Kpa
Size	157 × 84.5 × 59.5mm (including accessories)
Weight	365g (including battery and accessories)
Bluetooth function (Optional)	Real-time data transmission to mobile phone or PC

Key Features

Multi-gas detection capability (Oxygen compounds VOC, combustible gas, toxic gas)
Man down alarm function for enhanced safety
One-key security detection and storage operations
Automatic image flipping and ergonomic design
Optional Bluetooth transmission for real-time data monitoring
International IECEX, ATEX explosion-proof certification
IP67 protection rating with antistatic testing
Automatic switch between suction and diffusion sampling methods
Compact, portable design for easy carrying

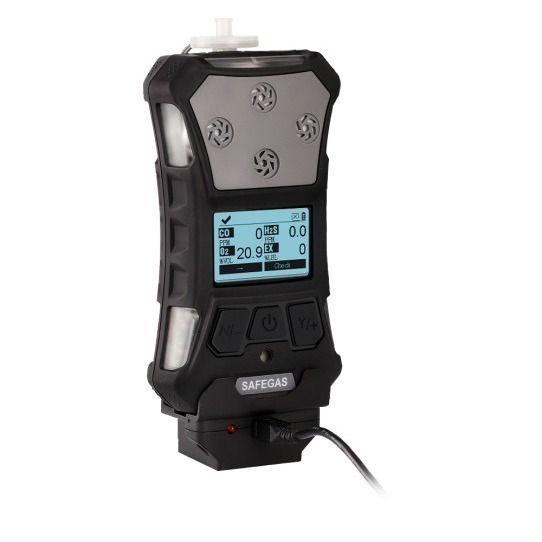

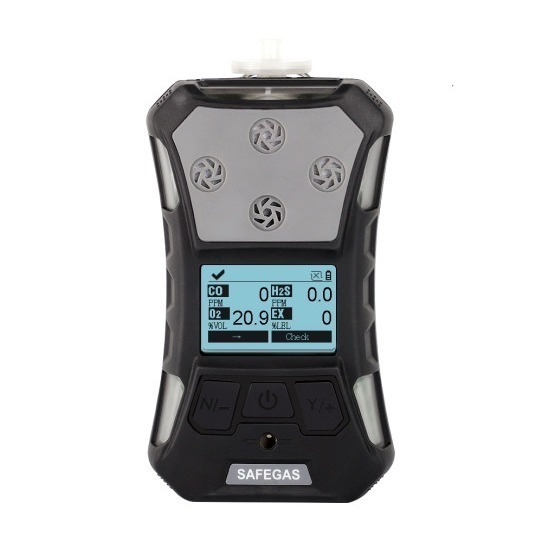

Product Images

Applications

This device is widely used in various industrial fields:

Petrochemical & Chemical Industry
Municipal Engineering & Utilities
Agricultural & Environmental Protection
Electronic Industry
Food & Pharmaceutical Industry

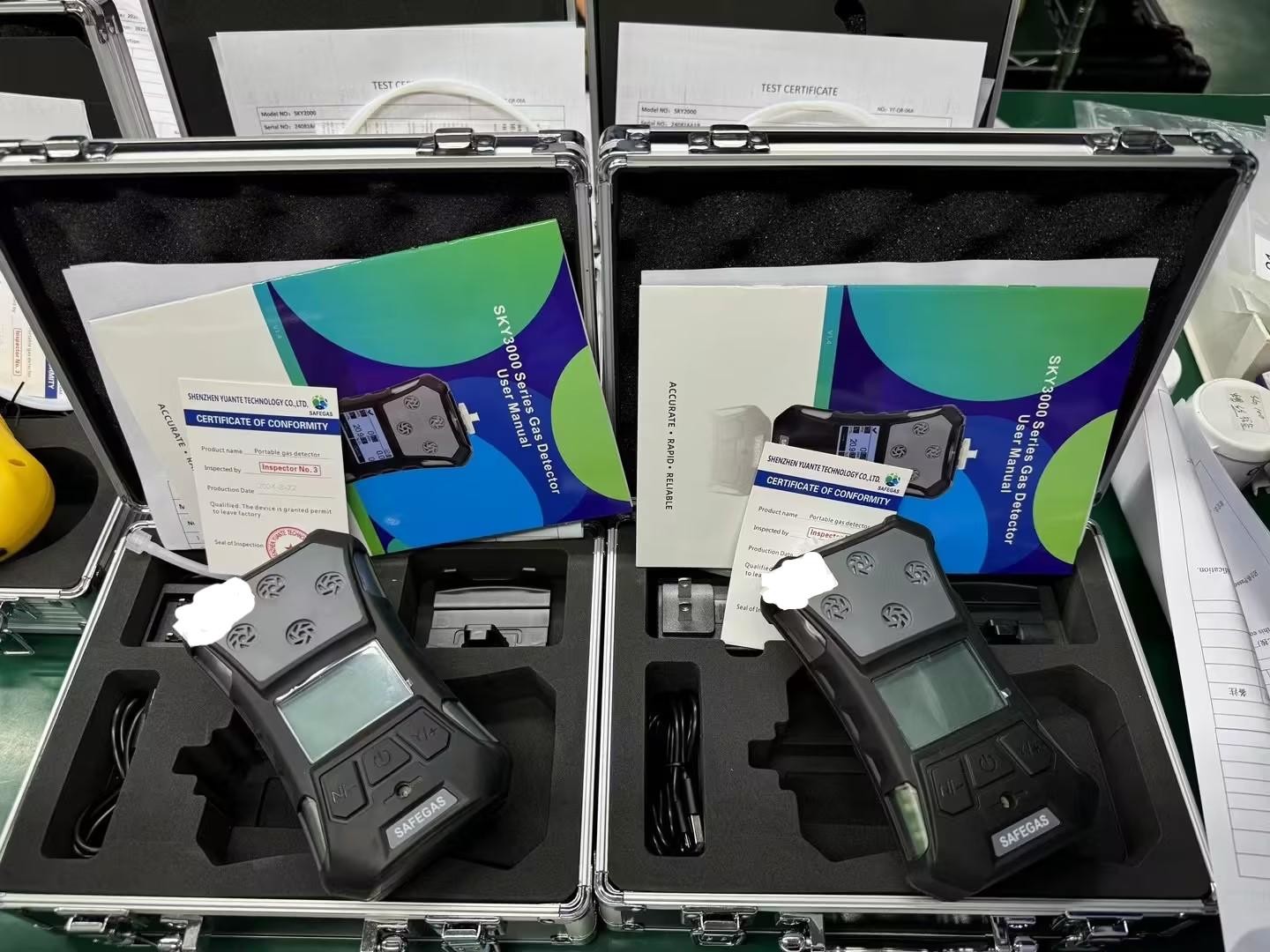

Application Photos

Standard Configuration

Gas detector - 1 piece
12V/1A DC power adapter - 1 piece
USB cable - 1 piece
User manual - 1 piece
Warranty card - 1 piece
Filter - 1 piece
Aluminum suitcase - 1 piece

Why Choose Us?

R&D team experience: over 25 years

Company certification: ISO9001, ISO45001

Product certification: IECEx (the only one in China), ATEX, CE

Delivery: 5-7 days

Yearly capacity: 80,000 units

Service: Professional sales staff provide 7*24 hours service

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have complete production lines and solutions for different industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.

Product Line

Our products include portable types, fixed types and controller panels:

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000

Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200

Controller panels: YT-1100H, YT-1600H

Certifications

Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality comparable to international brands with competitive pricing.

Major Clients

We have successfully cooperated with major international companies including Huawei, Coca-Cola, Samsung, Nestle and more.
