4 In 1 Portable Gas Detector with Electrochemical Sensor and IP65 Protection for Industrial Safety

اطلاعات پایه
محل منبع: چین
نام تجاری: SAFEGAS
گواهی: ISO CE CNEX
شماره مدل: SKY3000
مقدار حداقل تعداد سفارش: 1
قیمت: قابل مذاکره
جزئیات بسته بندی: کارتن
زمان تحویل: 3 روز کاری
شرایط پرداخت: T/T، وسترن یونیون
قابلیت ارائه: 1000 قطعه در ماه
اطلاعات تکمیلی
گاز: CO H2S O2 LEL دامنه اندازه گیری: 0-1000PPM 0-100PPM 0-30%VOL 0-100%LEL
قطعنامه: 1PPM 0.1PPM 0.1%VOL 1%LEL نوع سنسور: الکتروشیمیایی
روش نمونه گیری: انتشار مواد: قاب چرمی +ABS
نمایش: صفحه نمایش گرافیکی LCD تک رنگ ماتریس 128*128 حالت زنگ: صدا، نور و لرزش
باتری: باتری لیتیومی قابل شارژ 3.7 ولت با ظرفیت 2500 میلی آمپر ساعت واحد: ppm، mg/m3، %VOL، %LEL
اندازه بسته تکی:: 131cm*83cm*35cm وزن:: 240 گرم
درجه حفاظت: IP65

توضیحات محصول

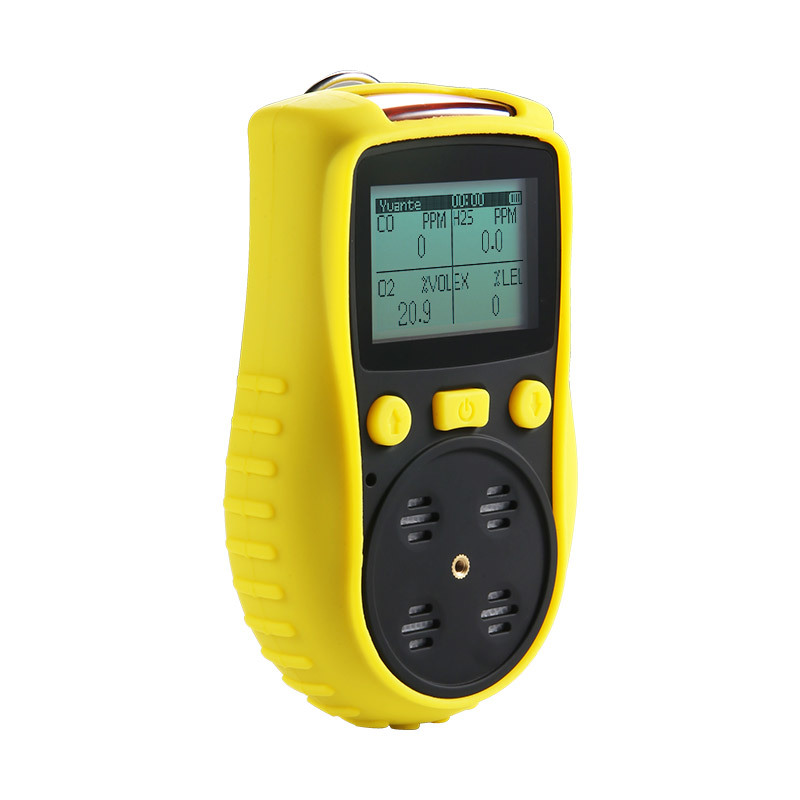

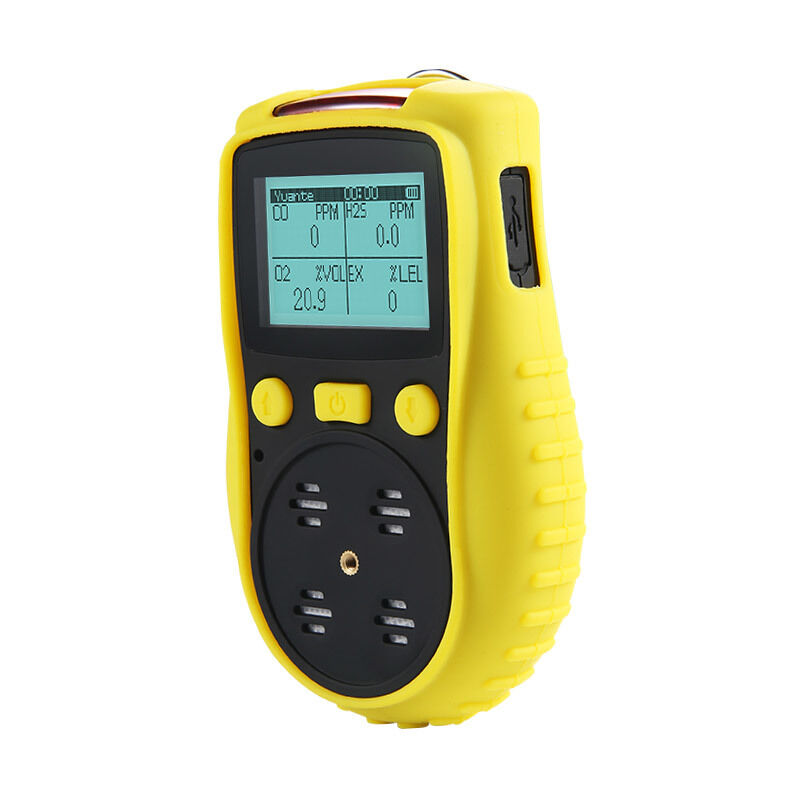

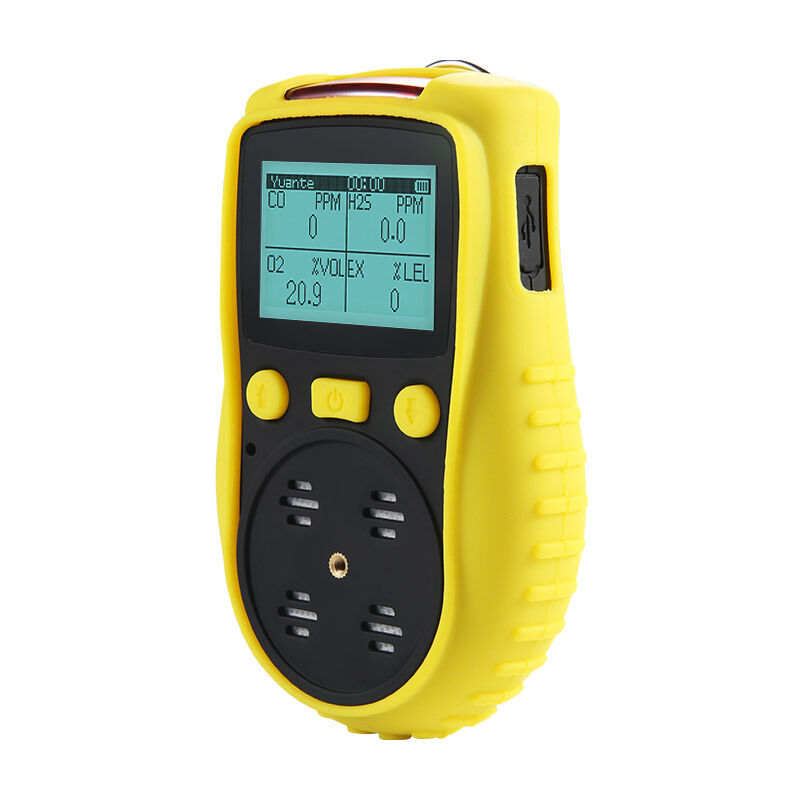

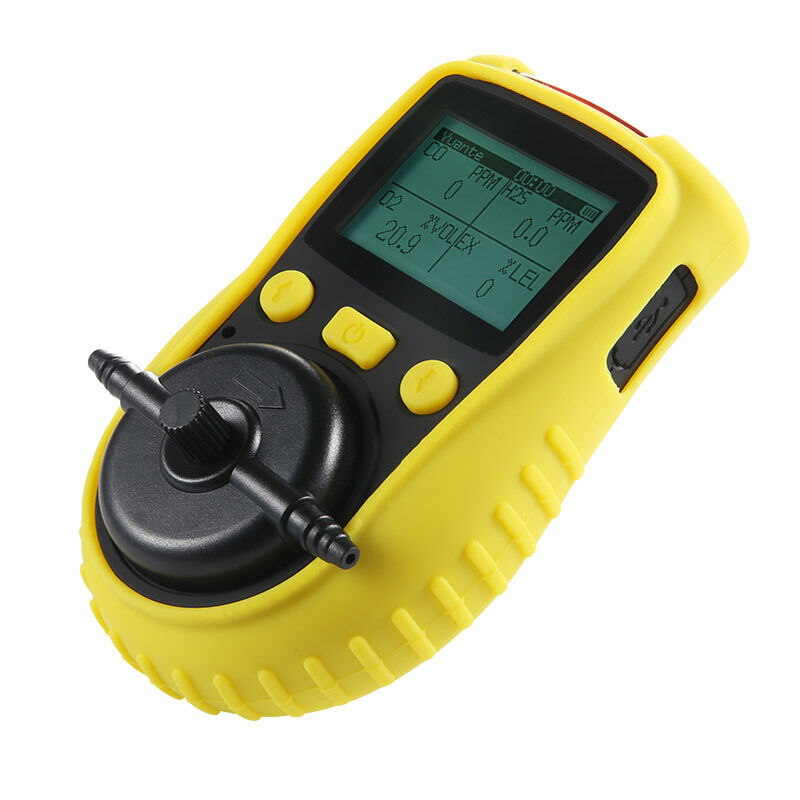

YT-1200H Portable 4-in-1 Gas Detector
Product Overview

The YT-1200H Portable Gas Detector is a high-precision, compact instrument designed for industrial safety applications. Utilizing diffusion detection principles, this multi-gas detector offers reliable monitoring of toxic gases, flammable gases, and oxygen levels in hazardous environments.

The YT-1200H series represents a mini-sized, cost-effective portable gas detector with high accuracy. Designed for ease of operation with comprehensive functionality, it features a back clip and silicone protective case, making it suitable for various industrial situations.

Key Features
  • Standard event logging with 100 records viewable directly on device
  • Smart, lightweight design for comfortable wearing
  • LCD dot matrix display for clear visibility
  • One-button factory reset functionality
  • Ultra-high buzzer alarm with sound, light, and vibration alerts
  • Optional data logging with PC export capability
  • Large capacity rechargeable battery for extended operation
  • Integrated alligator clip for convenient portability
  • Durable ABS housing with comfortable tactile finish
Technical Specifications
Parameter Value
Gas Detected Specified according to application
Detection Principle Diffusion
Sensor Type Specified according to application
Measuring Range Specified according to application
Resolution Specified according to application
Precision <1-5% F.S.
Display Monochrome dot matrix 128×128 LCD graphic display
Backlight Settable time; auto-on during alarm
Data Logging Optional: 100,000 readings (10-3600 sec interval)
Event Logging 100 event records (standard, viewable on device)
Language Chinese / English
Alarm Type Sound, light, vibration
Battery 3.7V rechargeable lithium battery, 2500mAh
Working Time 14h continuous (4 gases); 200h (without LEL sensor)
Charger Travel charger; charging time 4-6h
Explosion-Proof Grade Ex ia IIC T4
Protection Grade IP65
Working Temperature 10°C - 50°C
Working Humidity 15 - 95% RH
Housing Material ABS + leather case
Dimensions (L × W × H) 131 × 83 × 35 mm
Weight 240g
Product Images
4 In 1 Portable Gas Detector with Electrochemical Sensor and IP65 Protection for Industrial Safety 0 4 In 1 Portable Gas Detector with Electrochemical Sensor and IP65 Protection for Industrial Safety 1 4 In 1 Portable Gas Detector with Electrochemical Sensor and IP65 Protection for Industrial Safety 2 4 In 1 Portable Gas Detector with Electrochemical Sensor and IP65 Protection for Industrial Safety 3 4 In 1 Portable Gas Detector with Electrochemical Sensor and IP65 Protection for Industrial Safety 4 4 In 1 Portable Gas Detector with Electrochemical Sensor and IP65 Protection for Industrial Safety 5 4 In 1 Portable Gas Detector with Electrochemical Sensor and IP65 Protection for Industrial Safety 6
Company Advantages
R&D team experience: over 25 years
Company certifications: ISO9001, ISO45001
Product certifications: IECEx, ATEX, CE
Delivery time: 5-7 days
Annual capacity: 80,000 units
Professional 7*24 hours customer service
Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line
Portable Detectors:
Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
Fixed Systems:
YT-95H, YT-98H, YT-96H, SG100, SG200
Controllers:
YT-1100H, YT-1600H, YT-1800H
Particle Counters:
AQD5000, SKY6000-PM, SKY2000-PM
