| گاز هدف: | آمونیاک (NH3) | اصل تشخیص: | سنسور الکتروشیمیایی |
|---|---|---|---|
| محدوده اندازه گیری: | 0-100/200/500/1000/2000/5000ppm | دقت: | 2-5 ≤ 5 ٪ FS |
| ولتاژ کاری: | 12-24VDC | کلاس حفاظت: | IP66 / IP68 |
| بعد: | 157.8 × 128.8 × 69.6 میلی متر | مصالح مسکن: | آلومینیوم دایکاست؛ فولاد ضد زنگ S316 اختیاری است |

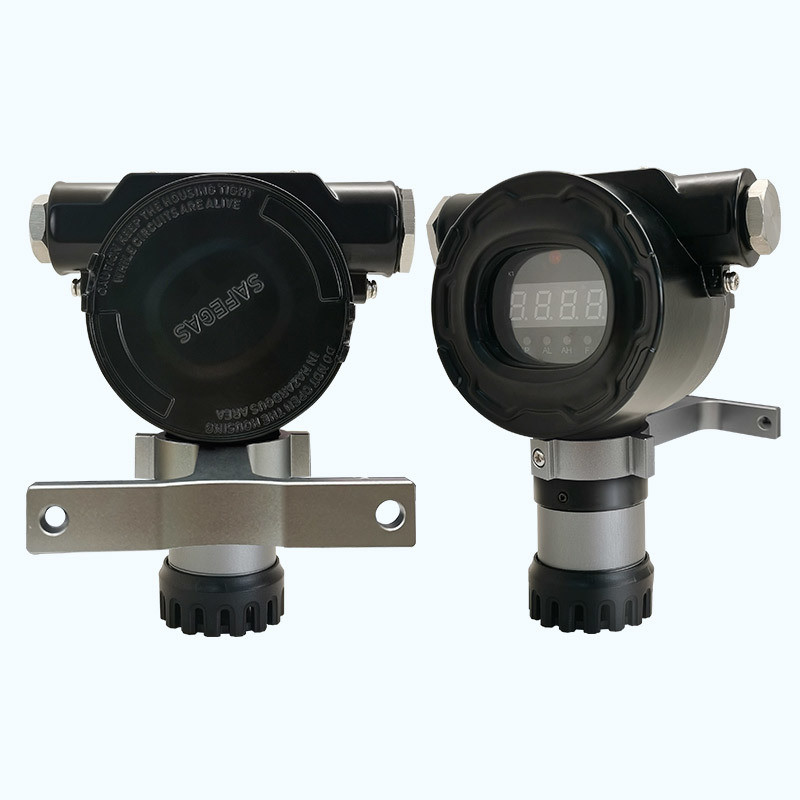

| برجسته کردن: | Continuous Monitoring Ammonia Gas Detector,IP66 IP68 NH3 Gas Detector,Electrochemical Sensor Ammonia Monitor |
||

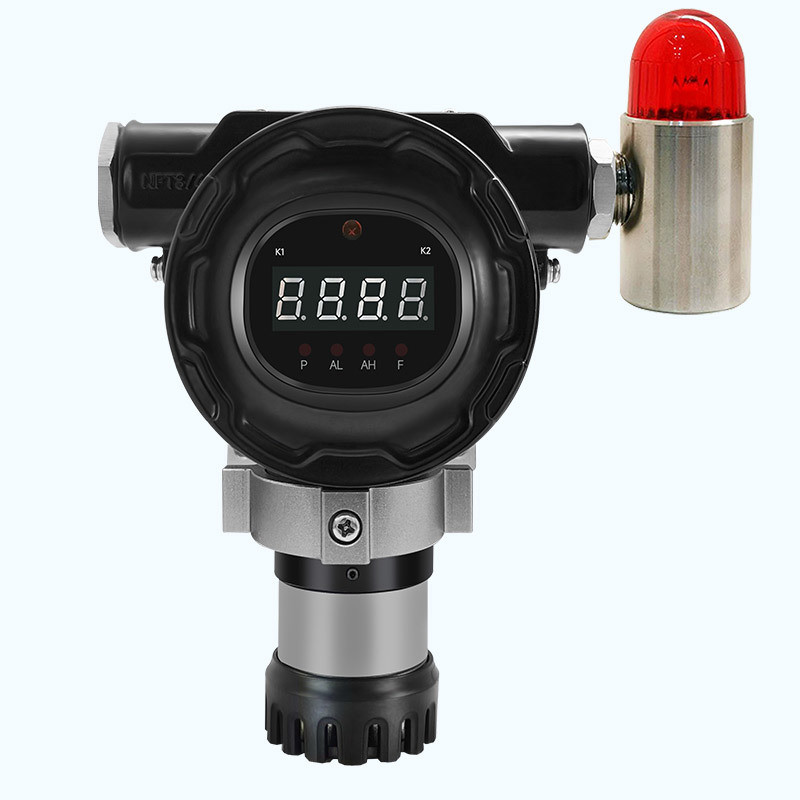

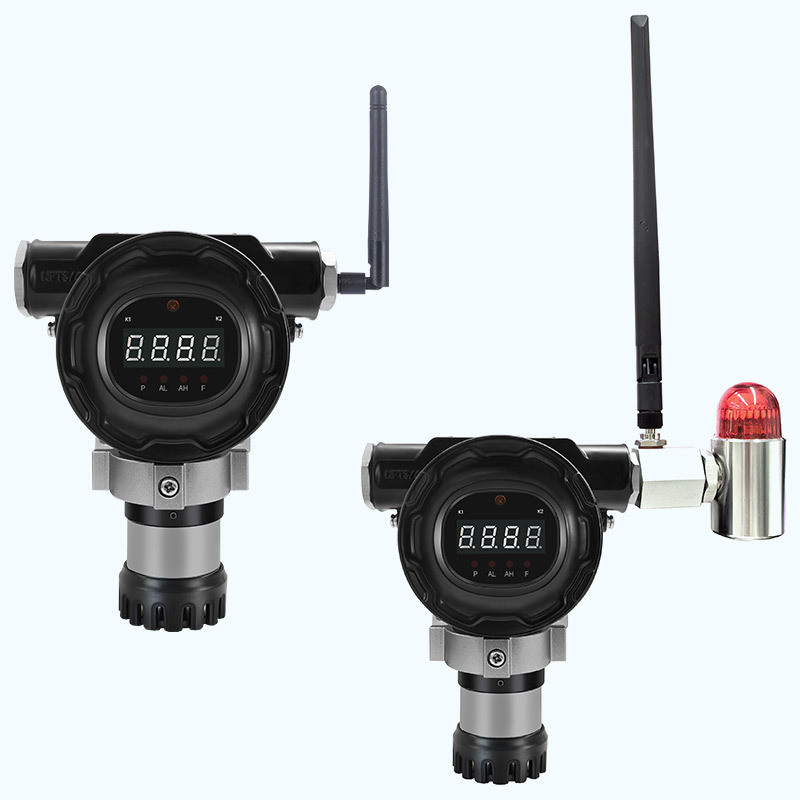

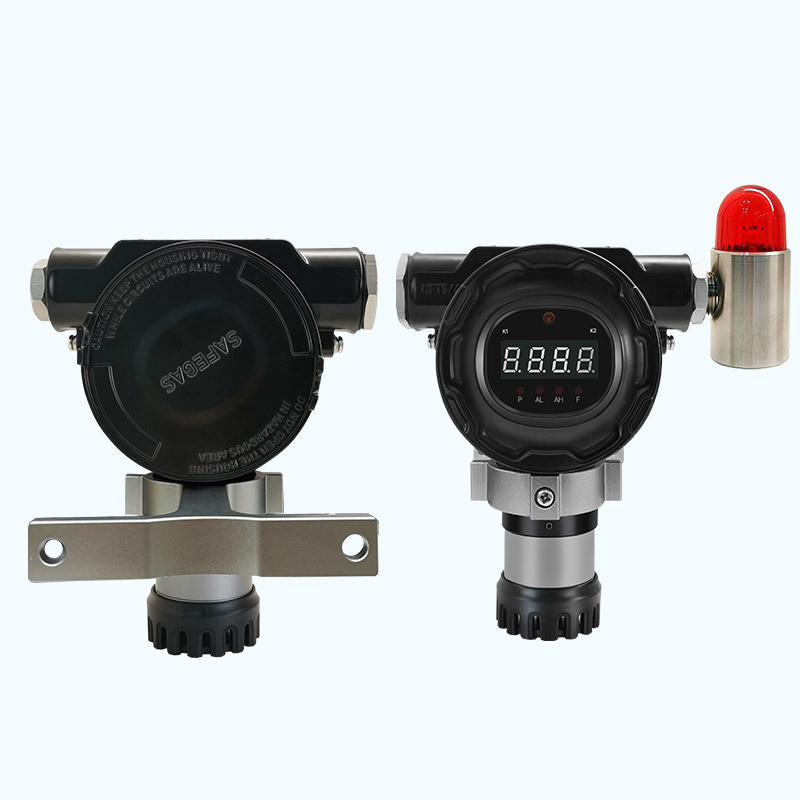

Product Overview The SG100 is a cost-effective, IECEx & ATEX-certified explosion-proof fixed online gas transmitter designed for continuous ammonia (NH3) monitoring. It uses an electrochemical sensor and offers multiple optional measuring ranges: 0-100 / 200 / 500 / 1000 / 2000 / 5000 ppm. Featuring IP66/IP68 ingress protection, an intelligent plug-and-play sensor module, multiple standard signal outputs, and optional wireless transmission, it also supports magnetic remote
